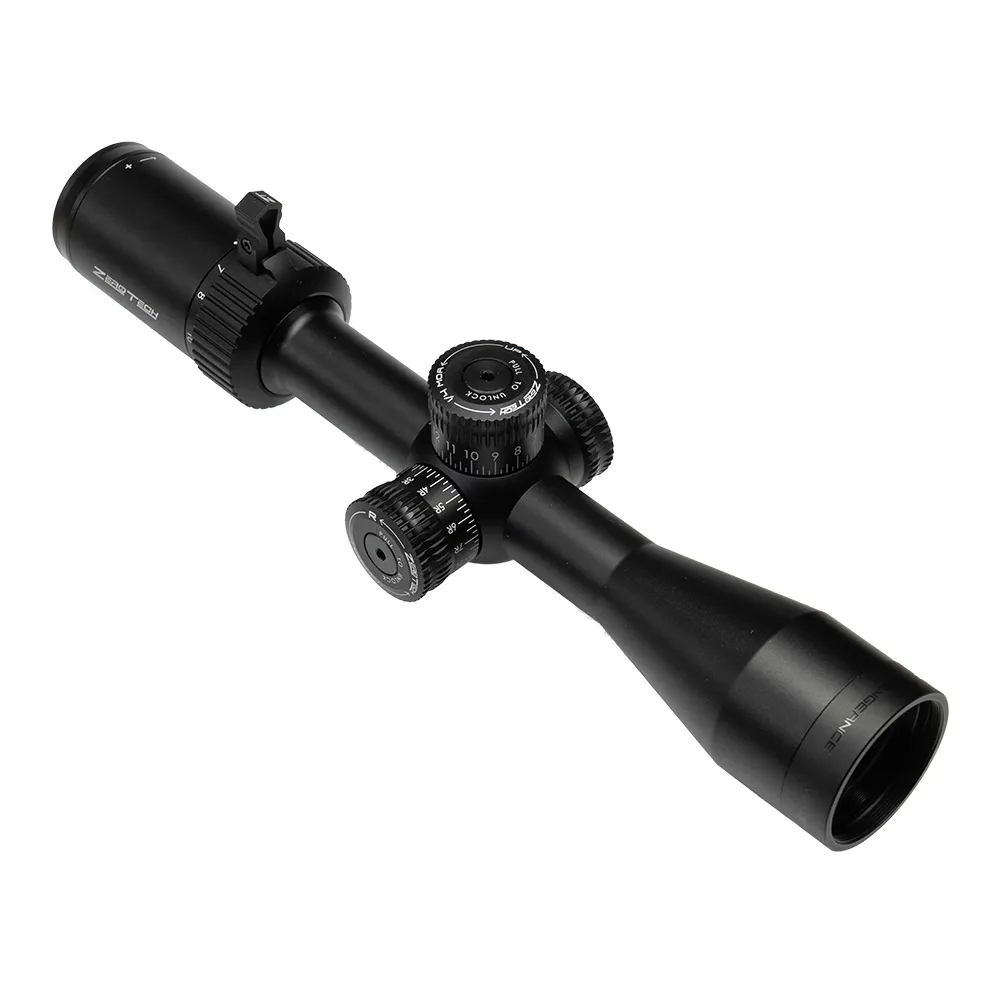

Description
Key Features
- 1-Inch Tube Advantage – Lightweight, compatible with classic rings, and perfectly balanced for field carry
- 3–12× Magnification Range – Adaptable clarity from close shots to extended ranges
- Side Parallax Adjustment – Correct parallax error from 15 metres to infinity for pinpoint precision
- Fully Multi-Coated Optics – Crisp contrast and bright image performance in all light conditions
SPECIFICATIONS
| Focal Plane | Second (SFP) |
| Reticle calibrated magnification power (SFP only) | 12x |
| Magnification Range | 3-12x |
| Objective Lens Diameter | 40mm |
| Maintube Diameter | 1″ |
| Maintube Material | 6061-T6 |
| Dioptre Adjustment | -2/ +2 |
| Zero Stop | No |
| Turret Index Value | 0.25MOA |
| Internal Elevation Adjustment | 60MOA |
| Internal Windage Adjustment | 60MOA |
| Parallax Adjustment Range | 15 metres to Infinity |
| Exit Pupil Diameter | Low: 13.6mm; High: 3.4mm |
| Eye Relief | 90mm |
| Field Of View @100 Meters | Low: 11.36m; High: 2.96m |
| Field Of View @100 Yards | Low: 34.1ft; High: 8.9ft |
| Objective Outer Diameter | 47.05mm |
| Lens Coating | Fully Multi Coated (FMC) |
| Ocular Outer Diameter | 44mm |
| Weight | 610g |
| Available Reticles | R3 & PHR 4 |
| Illumination | No |
| Waterproof Rating | IPX7 |
